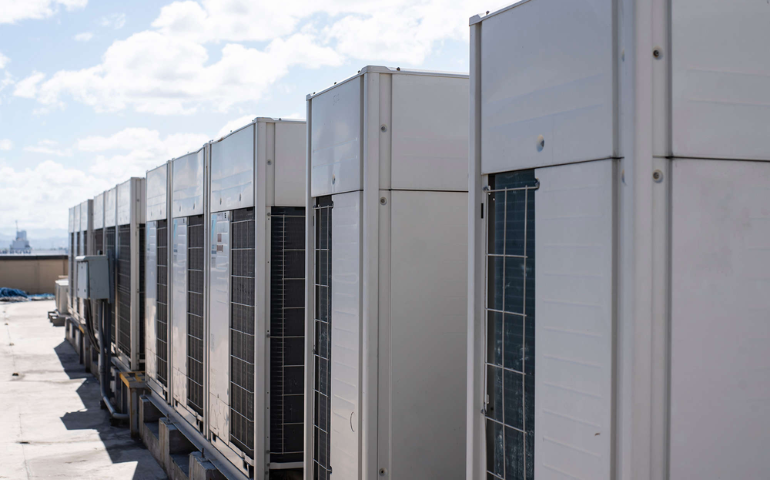

VRF / VRV Systems
Advanced Multi-Zone Climate Control for Large Buildings
System Overview
Variable Refrigerant Flow (VRF) systems represent the pinnacle of HVAC technology, offering simultaneous heating and cooling to different zones within the same building. These advanced systems feature DC twin-rotary compressors, heat recovery technology, and industry-leading piping flexibility (up to 1000 meters total length). With capacities from 8 HP to 60 HP in a single system and up to 64 indoor units per system, VRF is the ideal solution for large commercial buildings, hotels, hospitals, and mixed-use developments. The SMMS series incorporates 7 key smart technologies for optimal performance.
Key Features
Simultaneous heating and cooling in different zones
Heat recovery technology for maximum energy efficiency
DC twin-rotary compressor with DLC coated vane
Single module capacity up to 24 HP
Maximum system capacity: 60 HP (up to 64 indoor units)
Total piping length: Up to 1,000 meters
Farthest equivalent length: 235 meters
Height difference: Outdoor to indoor up to 90 meters
Backup operation - Continues working even if compressor fails
Reliability rotational control for equal compressor usage
New 3-row heat exchanger - 13% more surface area
Smart phone commissioning capability
External static pressure up to 60 Pa
Small animal protection - sealed inverter box
Compatible with BACnet, LonWorks, Modbus BMS
Key Benefits
- 30-40% energy savings compared to conventional systems
- No separate boiler/chiller required for heating/cooling
- Smaller plant room footprint
- Lower installation cost for large projects
- Individual metering for tenant billing
- Quiet operation (as low as 30 dB for indoor units)
- Reduced carbon footprint
- Flexible design for complex building layouts
- Less refrigerant needed - smaller pipe sizes
Technical Specifications
Capacity Range: 8 HP (22.4 kW) to 60 HP (157 kW)
Power Supply: 3-phase 400V, 50Hz
Compressor: DC Twin-Rotary (multiple per system)
Indoor Units per System: Up to 64 units
Total Piping Length: Up to 1,000 meters
Height Difference: Up to 90 meters
External Static Pressure: Up to 60 Pa
Refrigerant: R410A
Operating Range: -5°C to 46°C (cooling)
Ideal Applications
High-rise Commercial Buildings
Hotels & Resorts
Hospitals & Healthcare
Educational Campuses
Mixed-use Developments
Shopping Malls
Luxury Residential Towers
Airports & Railway Stations
