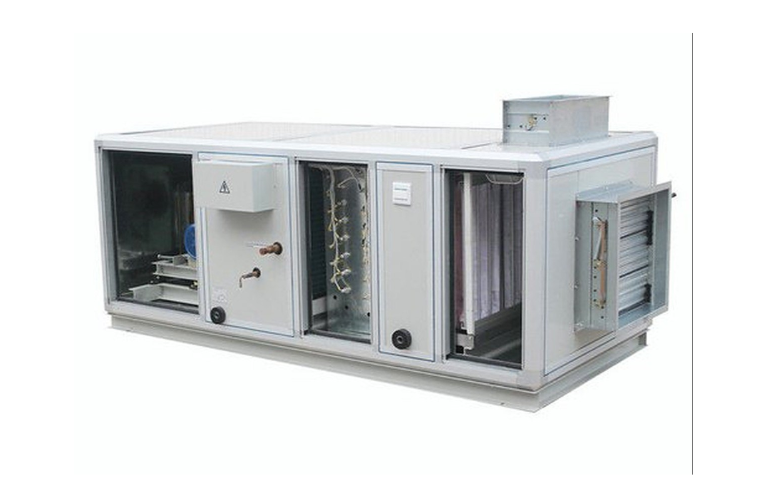

Air Handling Units (AHU)
Complete Air Treatment for Central HVAC
System Overview
Air Handling Units (AHUs) are the heart of centralized HVAC systems. They are large metal enclosures containing fans, heating/cooling coils, filters, humidifiers, and other components for treating and circulating air. AHUs connect to ductwork that distributes conditioned air throughout a building and return air to the unit. They can be configured for 100% fresh air, recirculation, or mixed air operation. Modern AHUs feature double-wall construction for thermal break, energy recovery wheels, and variable frequency drives for fan speed control, making them highly efficient.
Key Features
Complete air treatment in single enclosure
Double-wall construction with thermal break
High-efficiency centrifugal fans (forward/backward curved)
Chilled water or DX cooling coils
Hot water or electric heating coils
Bag or cartridge filters (up to HEPA)
Energy recovery wheel or plate heat exchanger
Humidification/dehumidification options
BMS integration with Modbus/BACnet
Variable Frequency Drive for fan control
Key Benefits
- Superior indoor air quality control
- Energy efficient operation with EC fans and recovery wheel
- Flexible configuration for specific requirements
- Easy maintenance with access panels
- Compliance with ASHRAE and ISO standards
- Low noise with acoustic insulation
- Customizable for cleanroom or hospital applications
Technical Specifications
Airflow Range: 1,000 CFM to 100,000+ CFM
Fan Types: FC, BC, Plug, Plenum
Filter Efficiency: G4 to HEPA H14
External Static Pressure: Up to 800 Pa
Coil Types: Chilled water, DX, Hot water, Electric
Construction: GI, Aluminum, Stainless Steel
Ideal Applications
Commercial Office Buildings
Hospitals & Healthcare
Shopping Malls
Airports & Railway Stations
Pharmaceutical Cleanrooms
Data Centers
Hotels & Resorts
